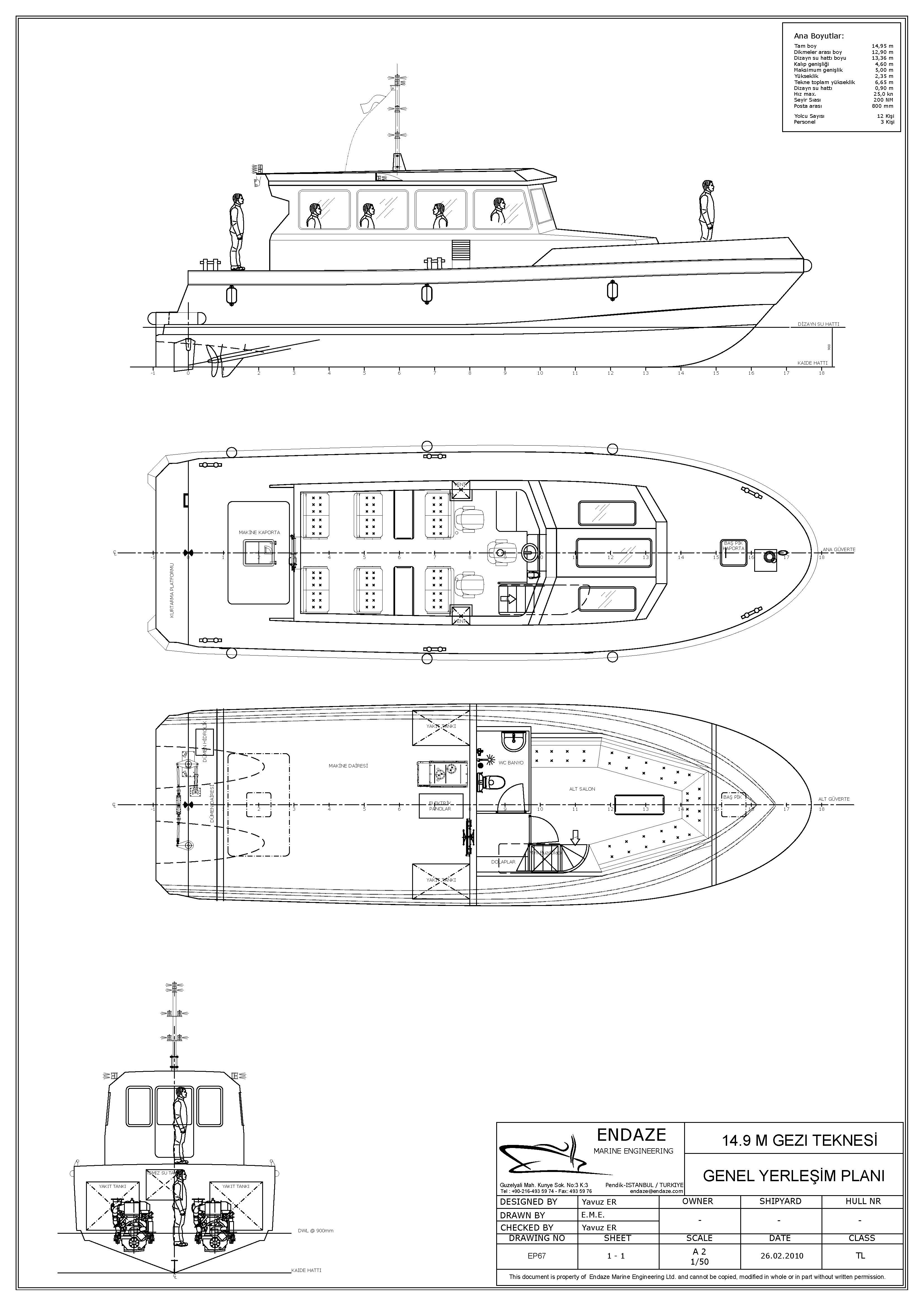

“14.9 m Gezinti Teknesi” | |
Endaze Project No : | EP67 |
Name : | - |
Shipyard : | - |
Owner : | - |
Classification : | T.L. |
Main Dimensions | |
Length : | 14.95 m |
Breadth : | 5.00 m |
Depth : | 2.35 m |
Draught : | 0.90 m |
Speed : | 25.0 Knot |
Propulsion : | Propeller , Diameter =850 mm |
Hull Material : | - |
S.S. Material : | - |
Main Engine Power : | 2X 600 HP 2100 RPM |
Aux. Generator : | 1X 12 KWE |
Other : | 3 Crew , 12 Passengers |
Scope | |
Conceptual | ENDAZE |
Consulting | ENDAZE |
Basic Design | ENDAZE |
Structural Detailed Design | • |
Machinery and Piping Detailed Design | • |
Engineering Calculations | • |
Production | • |
