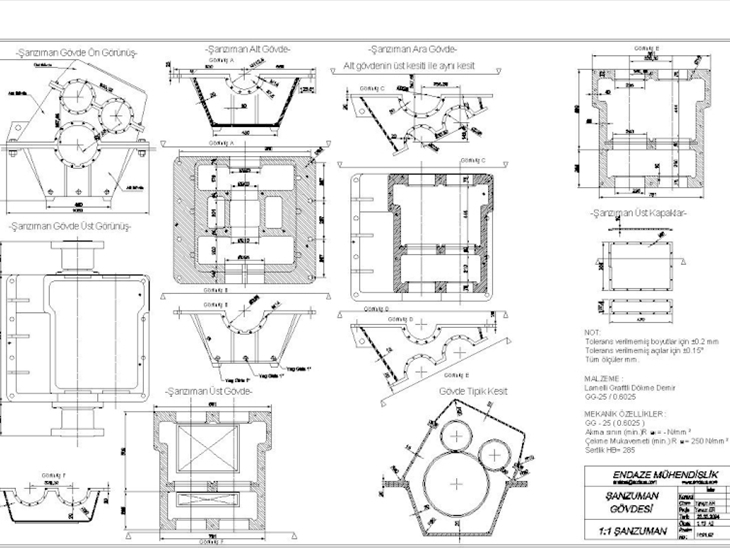

“Marine Gearbox”

Endaze Project No :

EP5

Name :

Gearbox

Shipyard :

-

Owner :

T.C.D.D.

Classification :

T.L.

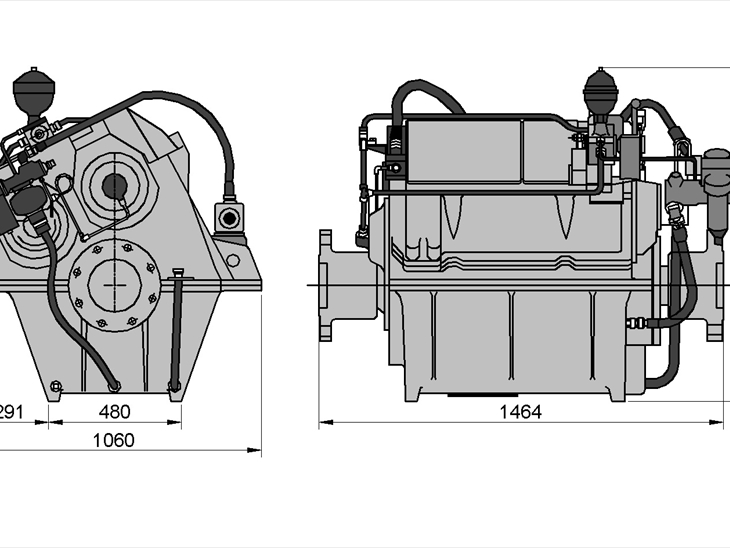

Main Dimensions

Length :

1.464 m

Breadth :

1.06 m

Depth :

1.208 m

Draught :

Speed :

Propulsion :

Hull Material :

Cast Iron

S.S. Material :

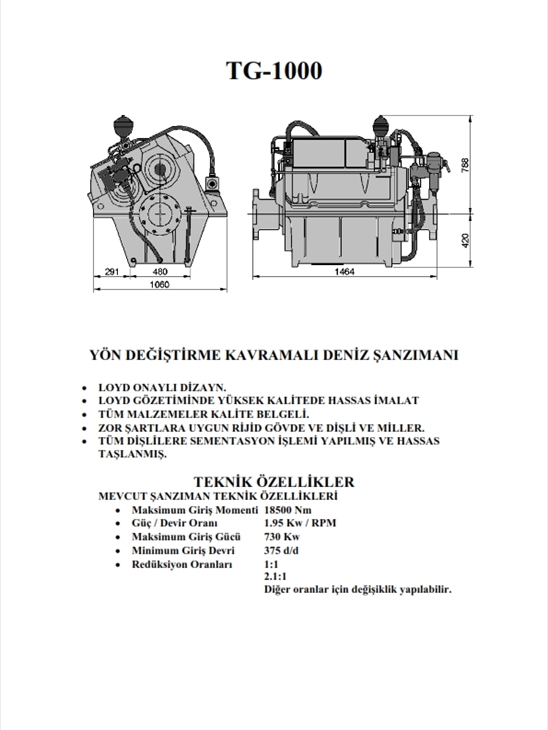

Max. Moment :

18500 Nm

Power/Speed ratio :

1.95 kw/RPM

Other :

1:1 / 2:1 Gearbox

Scope

Conceptual

ENDAZE

Consulting

ENDAZE

Basic Design

ENDAZE

Structural Detailed Design

ENDAZE

Machinery and Piping Detailed Design

ENDAZE

Engineering Calculations

ENDAZE

Production

ENDAZE
