“25 m Work Barge” | |
Endaze Project No : | EP170 |
Name : | - |
Shipyard : | ALMAR |
Owner : | - |
Classification : | B.V. |
Main Dimensions | |
Length : | 23.90 m |
Breadth : | 9.81 m |
Depth : | 3.41 m |
Draught : | 2.50 m |
Speed : | 10.00 knot |
Propulsion : | F.P.P Diameter 1400 mm With Nozzle |
Hull Material : | Steel AH36 |
S.S. Material : | Aluminum Alloy AA5083 |
Main Engine Power : | CAT C18MD05 DITA 2 x (533 bkw@2100 rpm) |
Aux. Generator : | - |
Other : | 3-6 Crew , 5 Passengers |
Scope | |
Conceptual | ENDAZE |
Consulting | ENDAZE |
Basic Design | ENDAZE |
Structural Detailed Design | ENDAZE |
Machinery and Piping Detailed Design | ENDAZE |
Engineering Calculations | ENDAZE |
Production |
|
Links | |
EP170 25 m Work Barge

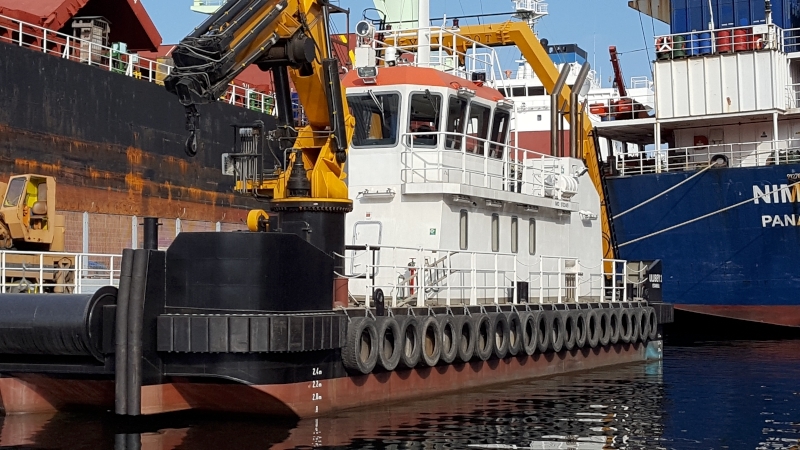

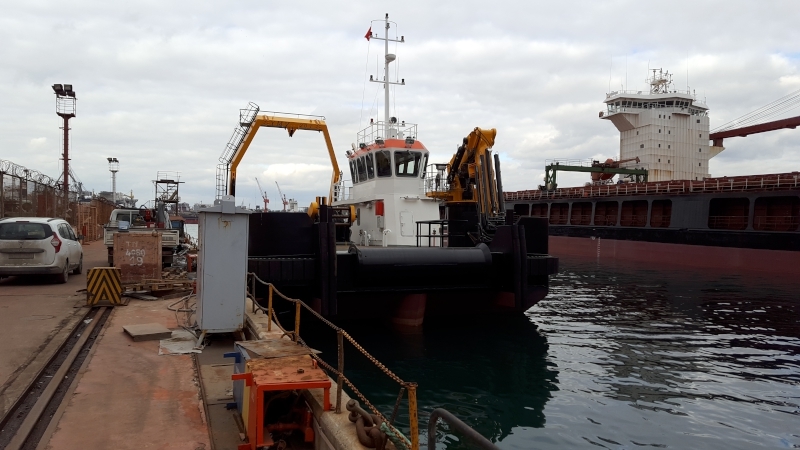

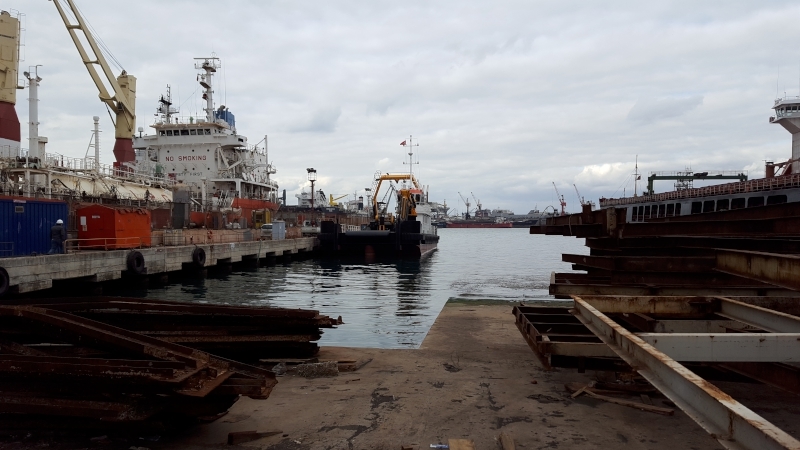

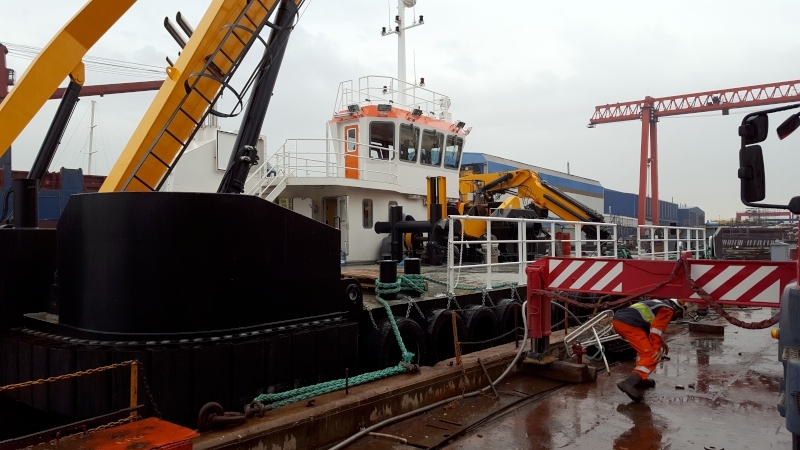

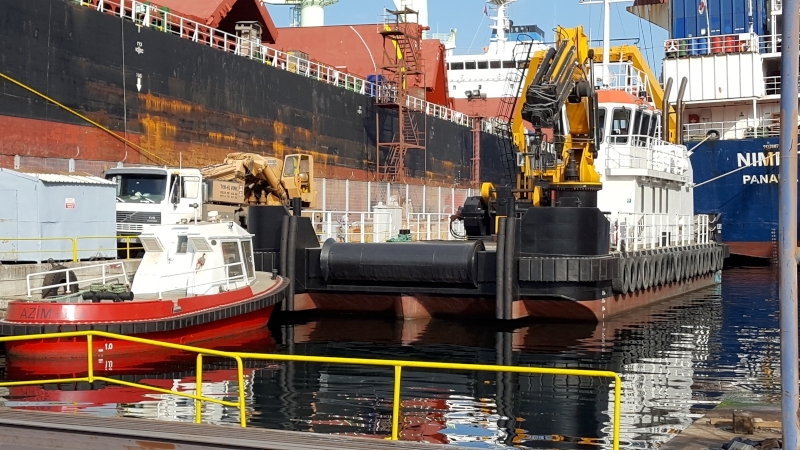

PHOTOS
