“25 m Work Barge” | |
Endaze Project No : | EP90 |
Name : | - |
Shipyard : | ALMAR |
Owner : | - |
Classification : | B.V. |
Main Dimensions | |
Length : | 23.90 m |
Breadth : | 9.75 m |
Depth : | 3.50 m |
Draught : | 2.50 m |
Speed : | 10.00 knot |
Propulsion : | F.P.P Diameter 1400 mm With Nozzle |
Hull Material : | Steel AH36 |
S.S. Material : | Aluminum Alloy AA5083 |
Main Engine Power : | 2X CAT C32 1000 HP 1800 RPM |
Aux. Generator : | 2X CAT C6.6 ACERT 125 KWE 1500 RPM 50 HZ-380V/ CATERPILLAR LSAM 44.2 M95 |
Other : | 4 Crew , 10 Passengers |
Scope | |
Conceptual | ENDAZE |
Consulting | ENDAZE |
Basic Design | • |
Structural Detailed Design | • |
Machinery and Piping Detailed Design | • |
Engineering Calculations | • |
Production | • |
Links | |

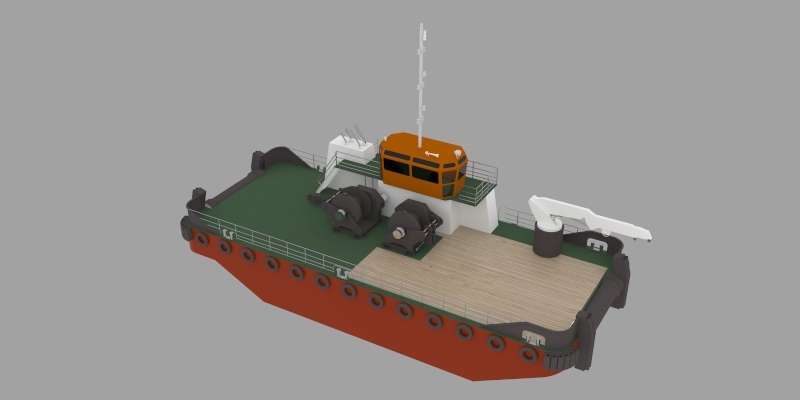

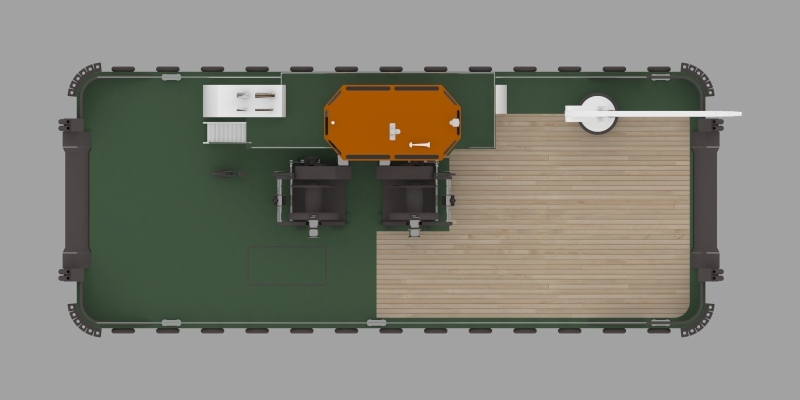

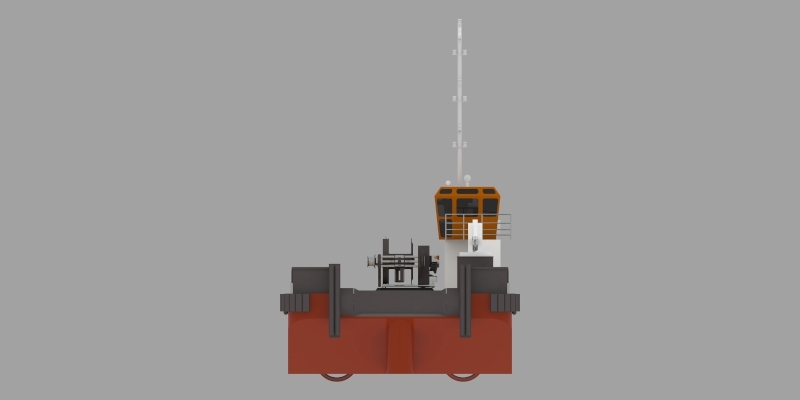

EP90 25 m Work Barge
PHOTOS
