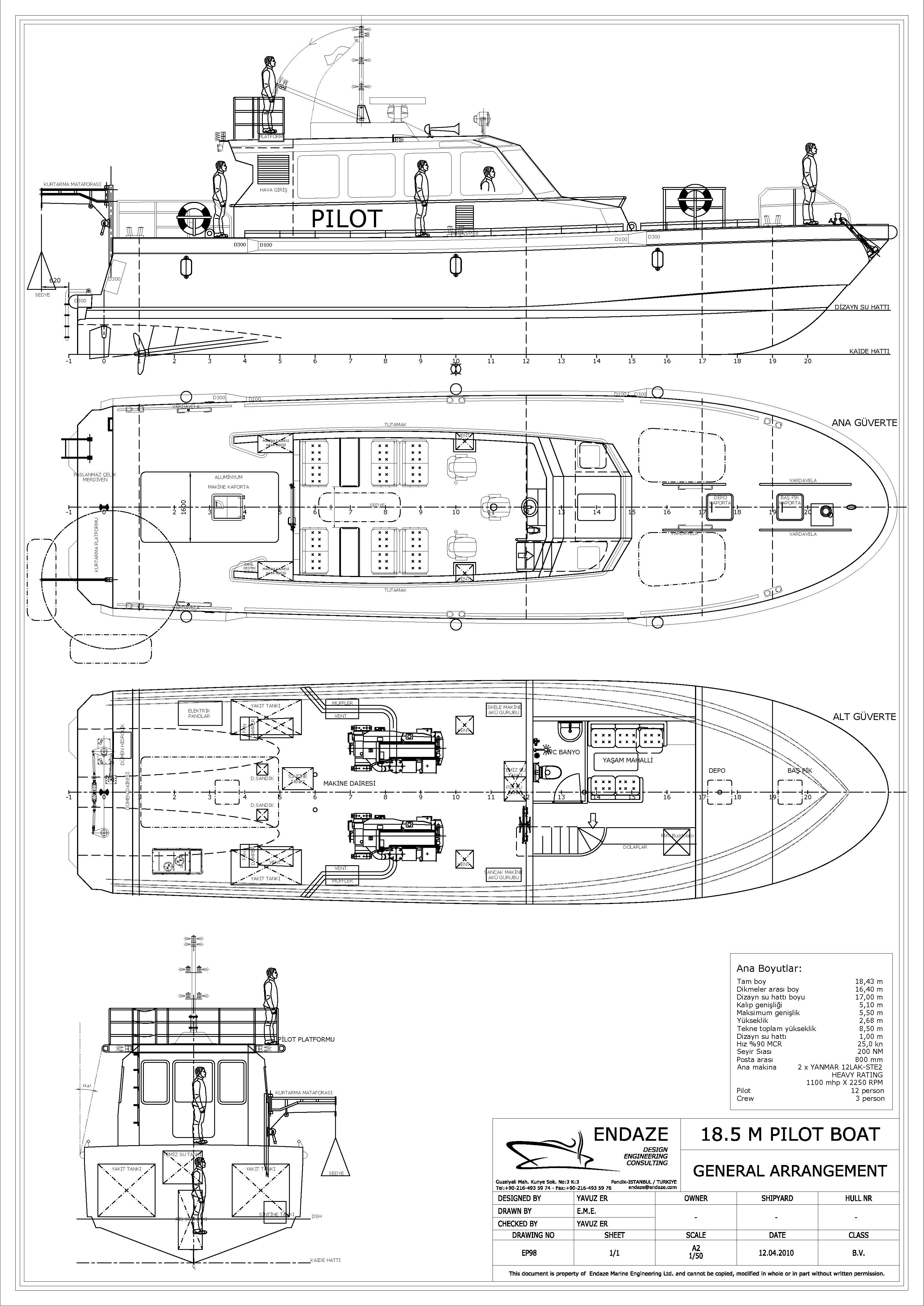

“18.5 m Pilot Boat”

Endaze Project No :

EP98

Name :

-

Shipyard :

-

Owner :

-

Classification :

B.V.

Main Dimensions

Length :

18.43 m

Breadth :

5.50 m

Depth :

2.68 m

Draught :

1.00 m

Speed :

25.00 knot

Propulsion :

Propeller , Diameter = 950 mm

Hull Material :

-

S.S. Material :

-

Main Engine Power :

2X YANMAR 12LAK-STE2 HEAVY RATING 1100 MHP 2250 RPM

Aux. Generator :

1X ONAN 21.5 KWE 1500 RPM

Other :

3 Crew , 12 Passengers

Scope

Conceptual

ENDAZE

Consulting

ENDAZE

Basic Design

•

Structural Detailed Design

•

Machinery and Piping Detailed Design

•

Engineering Calculations

•

Production

•
