“20 m Pilot Boat” | |
Endaze Project No : | EP116 |
Name : | P.L. LAHOOT 2012 |
Shipyard : | SANMAR SHIPYARD |
Owner : | - |
Classification : | B.V. |
Main Dimensions | |
Length : | 20.50 m |
Breadth : | 5.90 m |
Depth : | 2.92 m |
Draught : | 1.50 m |
Speed : | 20.00 knot |
Propulsion : | Propeller , Diameter = 950mm |
Hull Material : | High Strength Steel |
S.S. Material : | Aluminum Alloy AA5083 |
Main Engine Power : | 2X CAT C18 ACERT 873 HP |
Aux. Generator : | 2X CAT C4.4 38 KW 1500 RPM |
Other : | 3 Crew , 8 Passengers |
Scope | |
Conceptual | ENDAZE |
Consulting | ENDAZE |
Basic Design | ENDAZE |
Structural Detailed Design | ENDAZE |
Machinery and Piping Detailed Design | ENDAZE |
Engineering Calculations | ENDAZE |
Production | • |
Links | |
EP116 20 m Pilot Boat

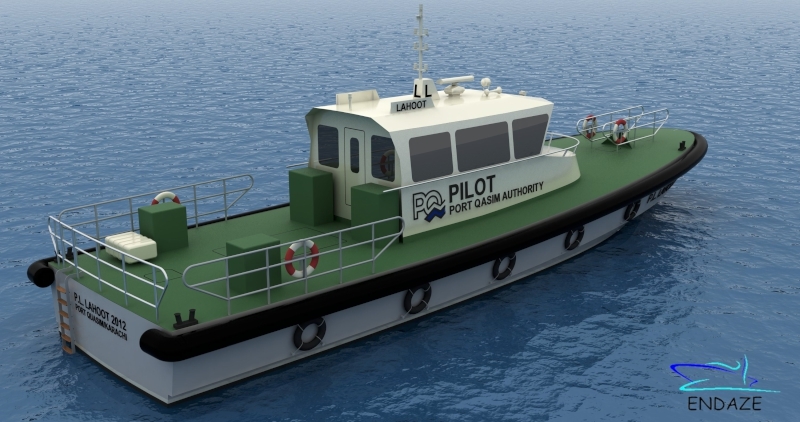

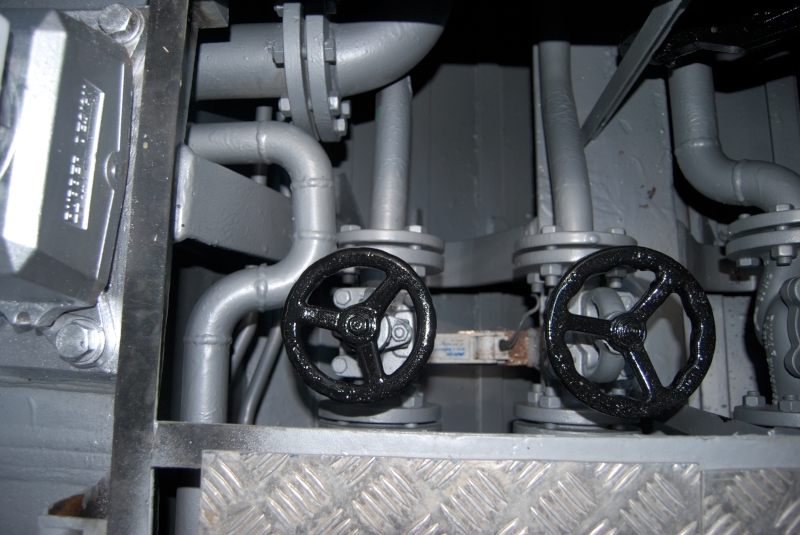

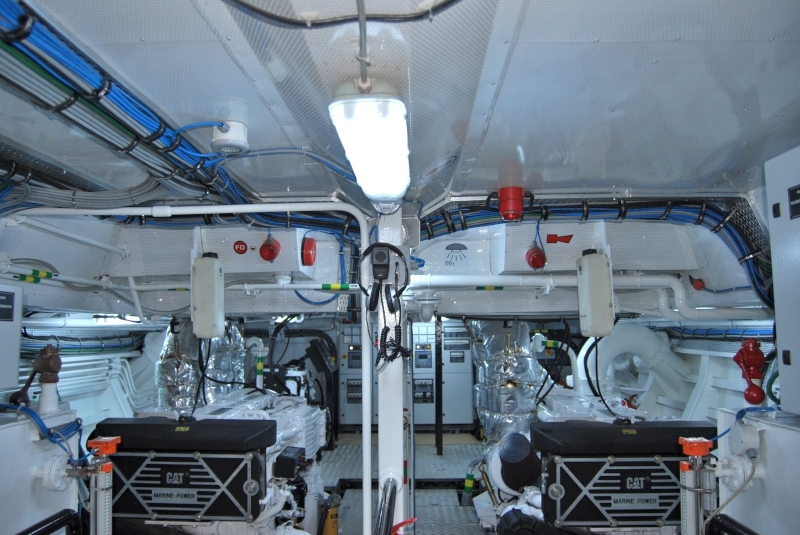

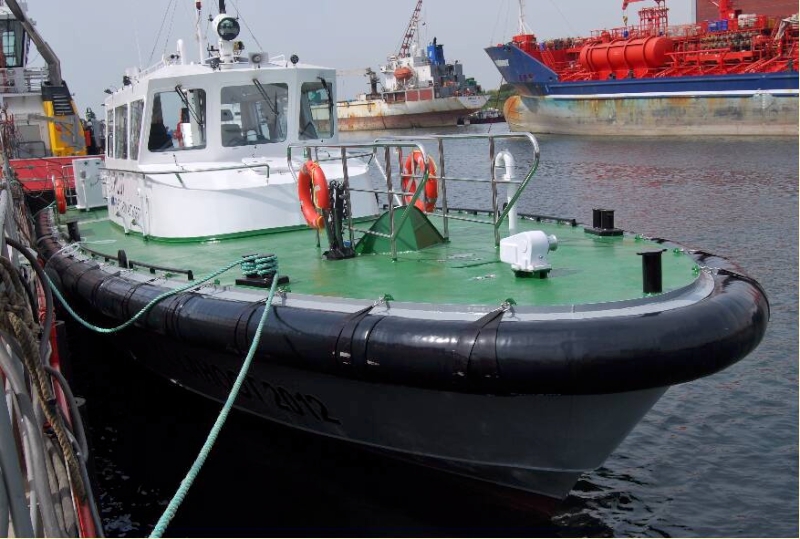

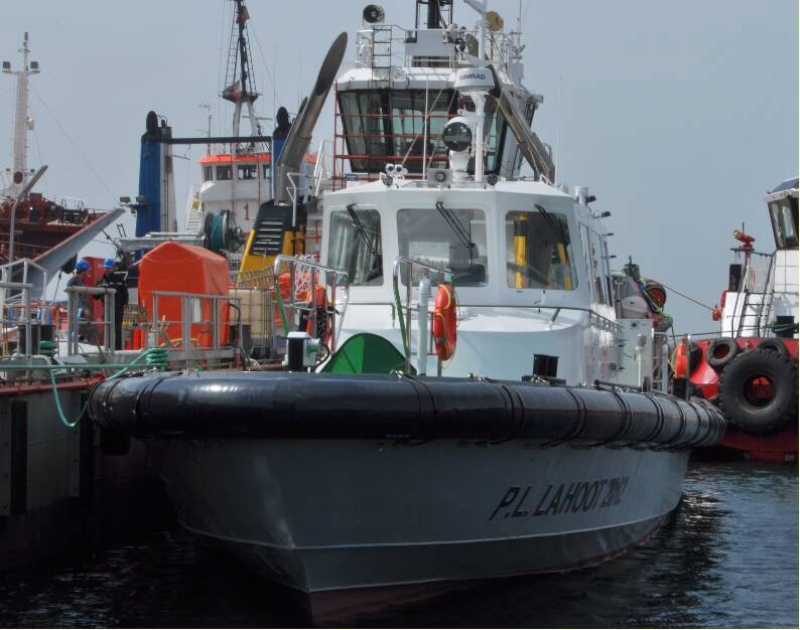

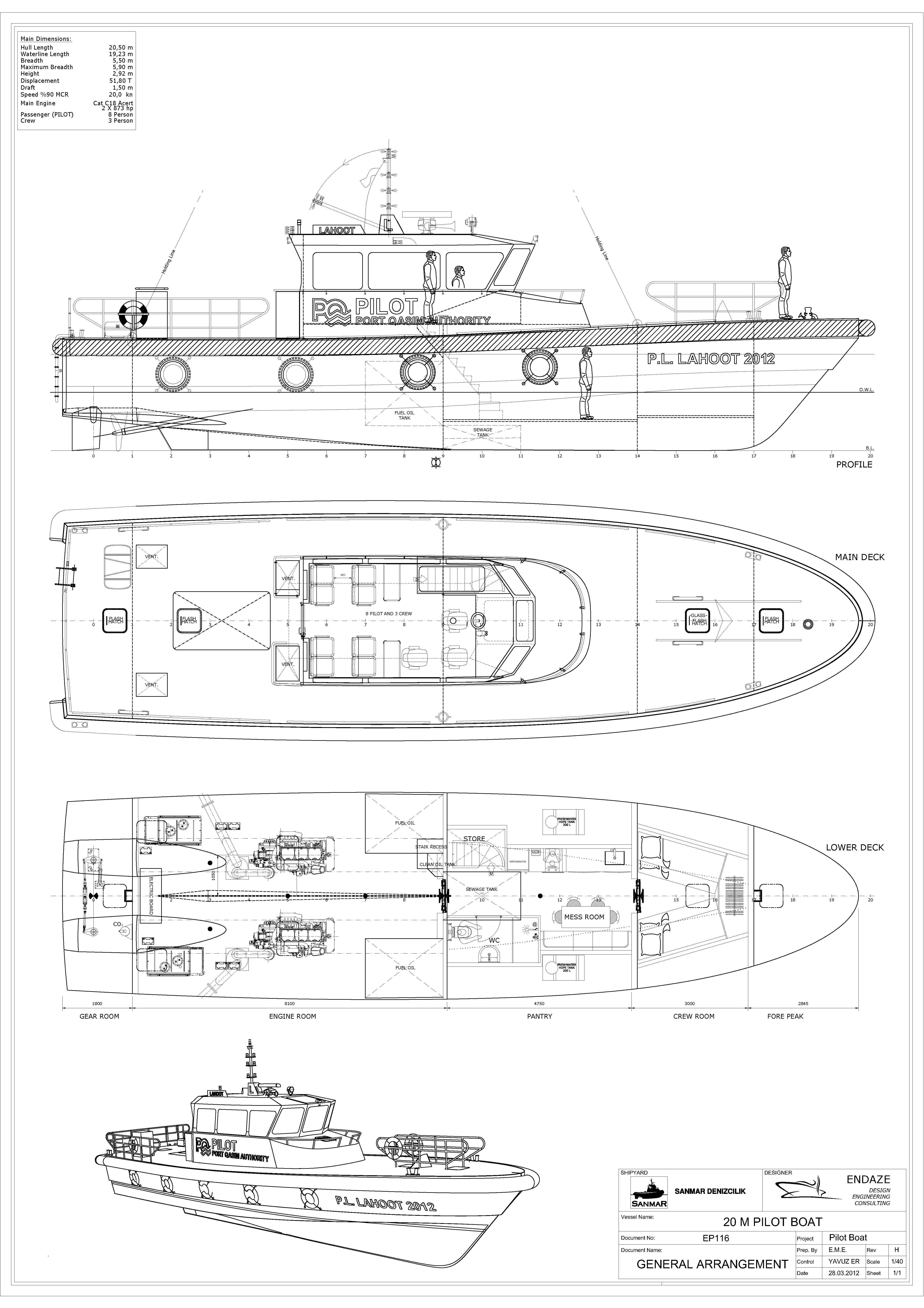

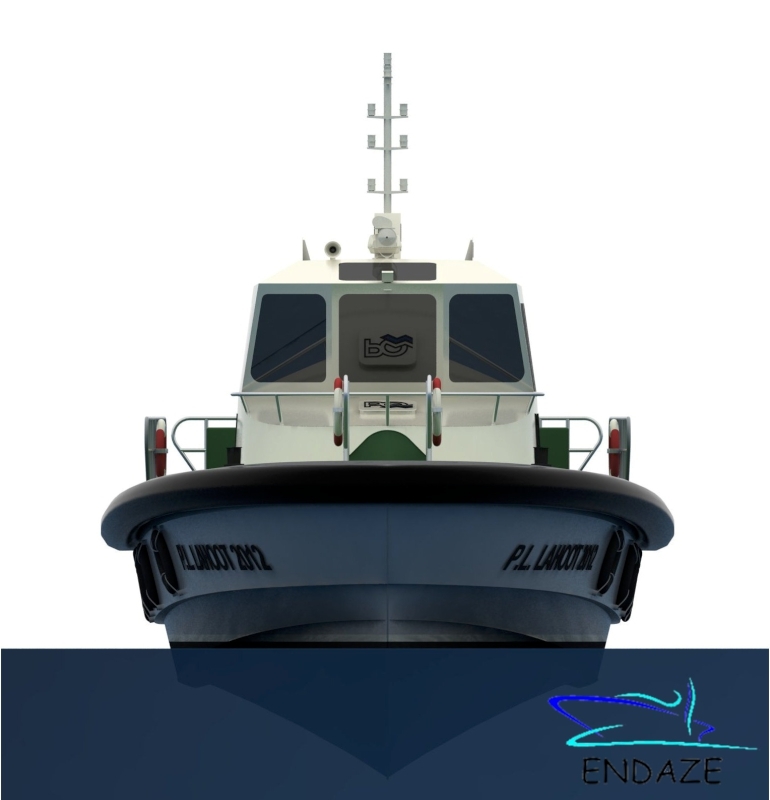

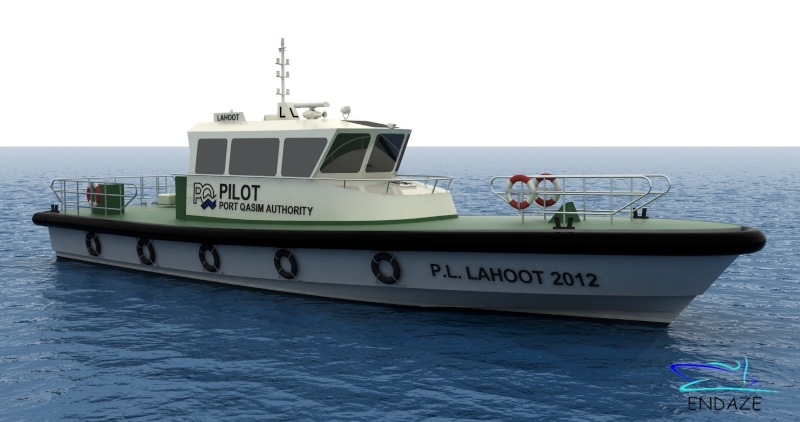

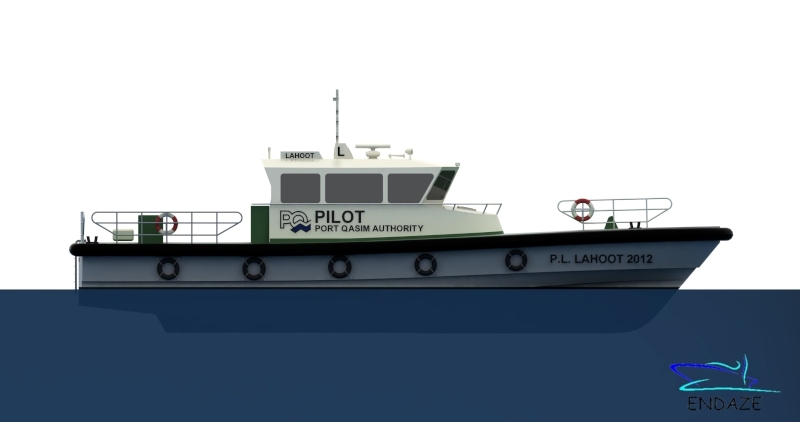

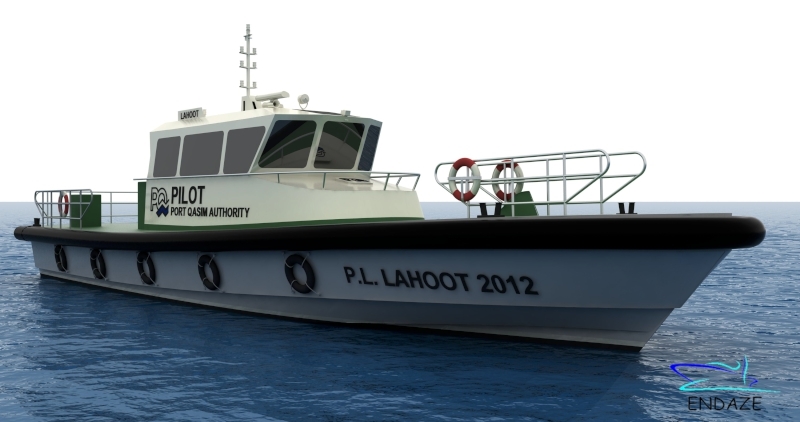

PHOTOS
