“11 m Servis Botu” | |
Endaze Project No : | EP129 |
Name : | - |
Shipyard : | - |
Owner : | - |
Classification : | - |
Main Dimensions | |
Length : | 11.40 m |
Breadth : | 3.75 m |
Depth : | 1.65 m |
Draught : | 1.00 m |
Speed : | 10.00 knot |
Propulsion : | Propeller , Diameter = 1050 mm |
Hull Material : | - |
S.S. Material : | - |
Main Engine Power : | 1X IVECO 330 HP |
Aux. Generator : | - |
Other : | 1 Crew , 6 Passengers |
Scope | |
Conceptual | ENDAZE |
Consulting | ENDAZE |
Basic Design | ENDAZE |
Structural Detailed Design | ENDAZE |
Machinery and Piping Detailed Design | ENDAZE |
Engineering Calculations | ENDAZE |
Production | • |
Links | |
EP129 11 m Servis Botu

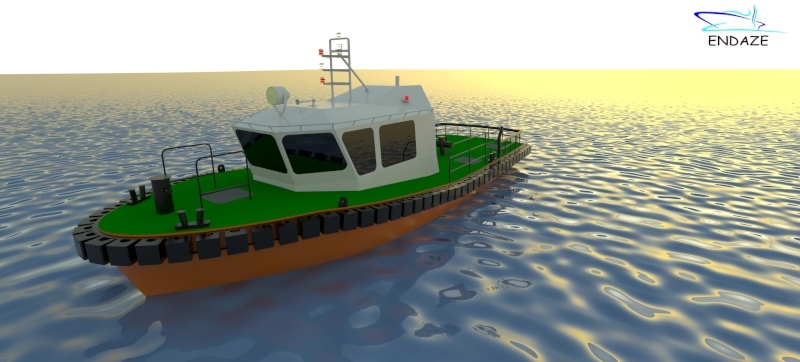

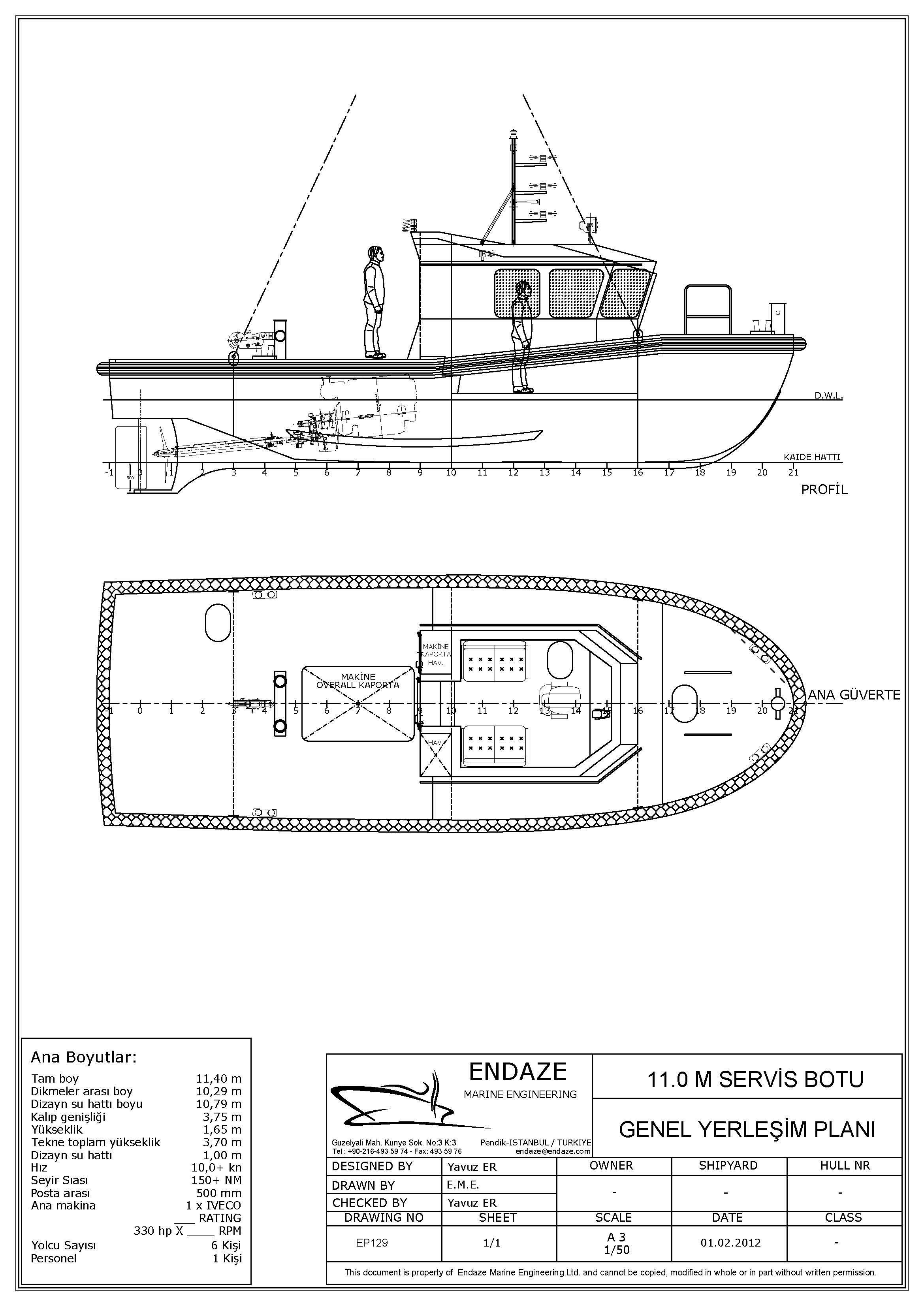

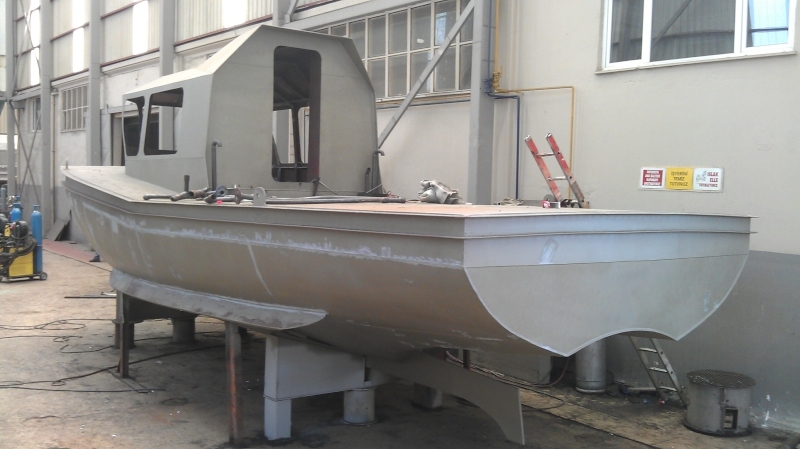

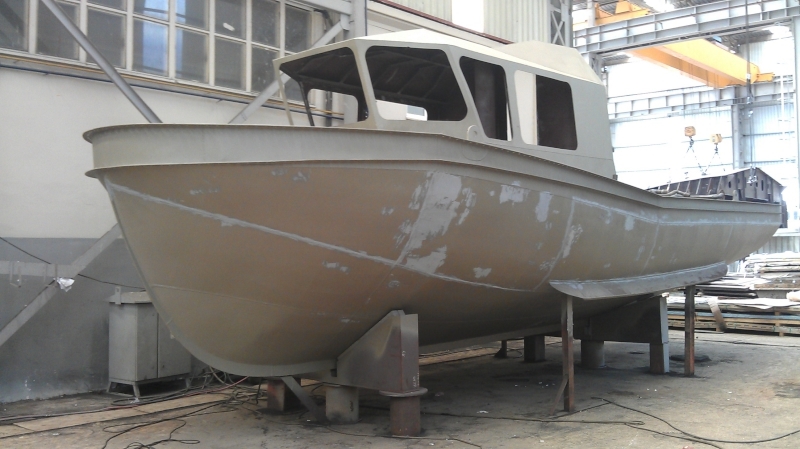

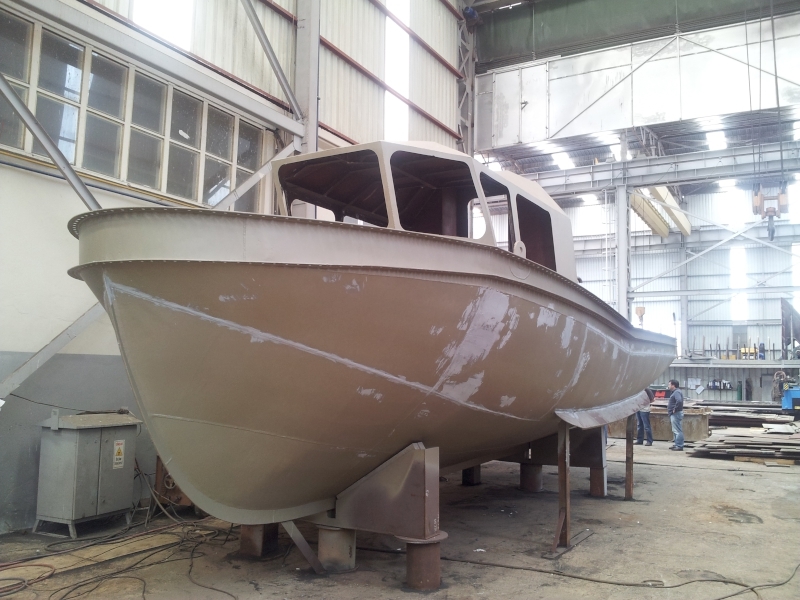

PHOTOS
