“14.53 m Pilot Boat” | |
Endaze Project No : | EP142 |
Name : | - |
Shipyard : | - |
Owner : | - |
Classification : | - |
Main Dimensions | |
Length : | 14.53 m |
Breadth : | 4.70 m |
Depth : | 2.10 m |
Draught : | 1.10 m |
Speed : | 26.00 knot |
Propulsion : | Propeller , Diameter = 900 mm |
Hull Material : | Steel |
S.S. Material : | Aluminum Alloy AA5083 |
Main Engine Power : | 2X 770 HP |
Aux. Generator : | 1X 10 KW 1500 RPM |
Other : | 1 Crew , 10 Passengers |
Scope | |
Conceptual | ENDAZE |
Consulting | ENDAZE |
Basic Design | ENDAZE |
Structural Detailed Design | ENDAZE |
Machinery and Piping Detailed Design | ENDAZE |
Engineering Calculations | ENDAZE |
Production | • |
Links | |

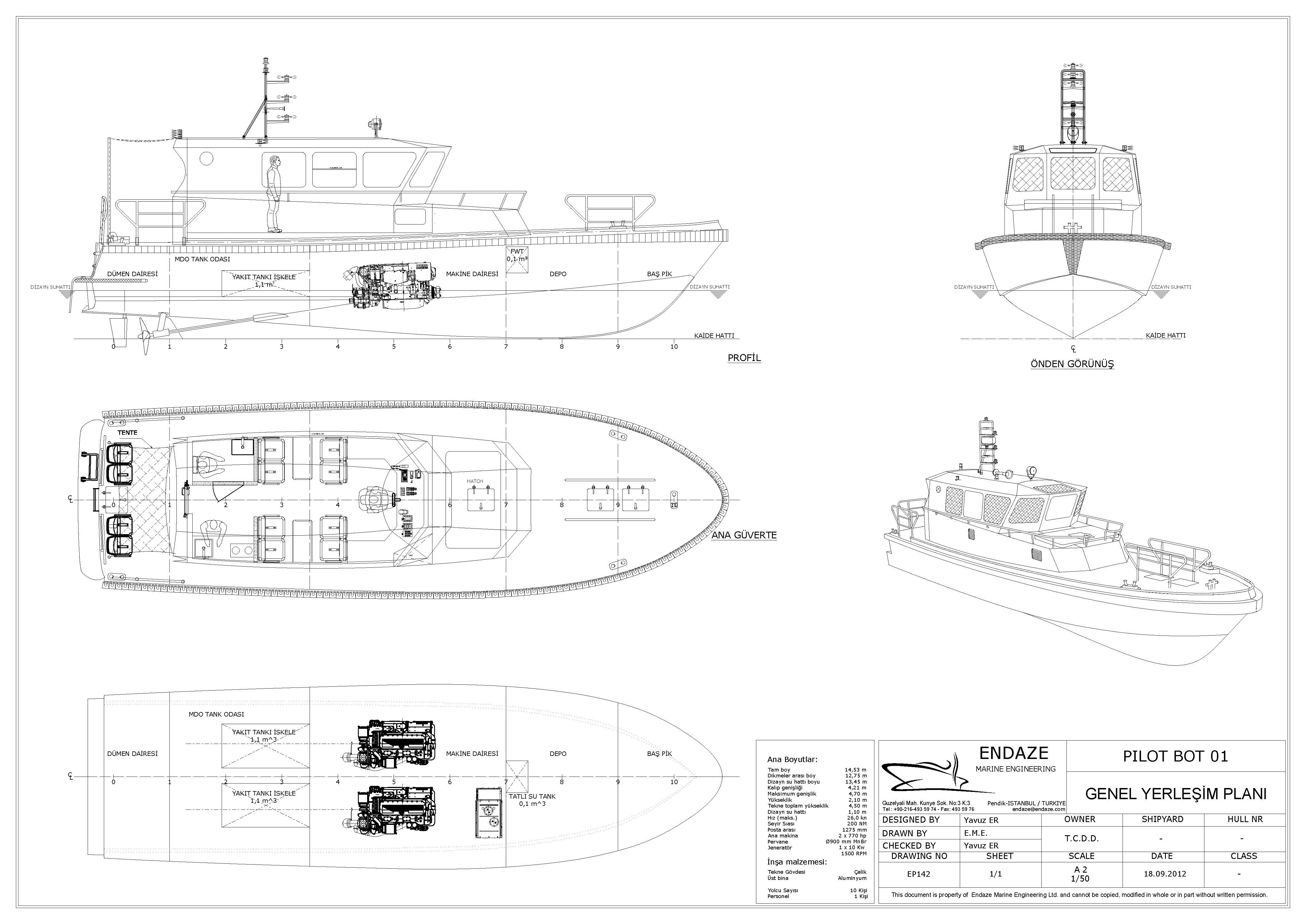

EP142 14.53 m Pilot Boat

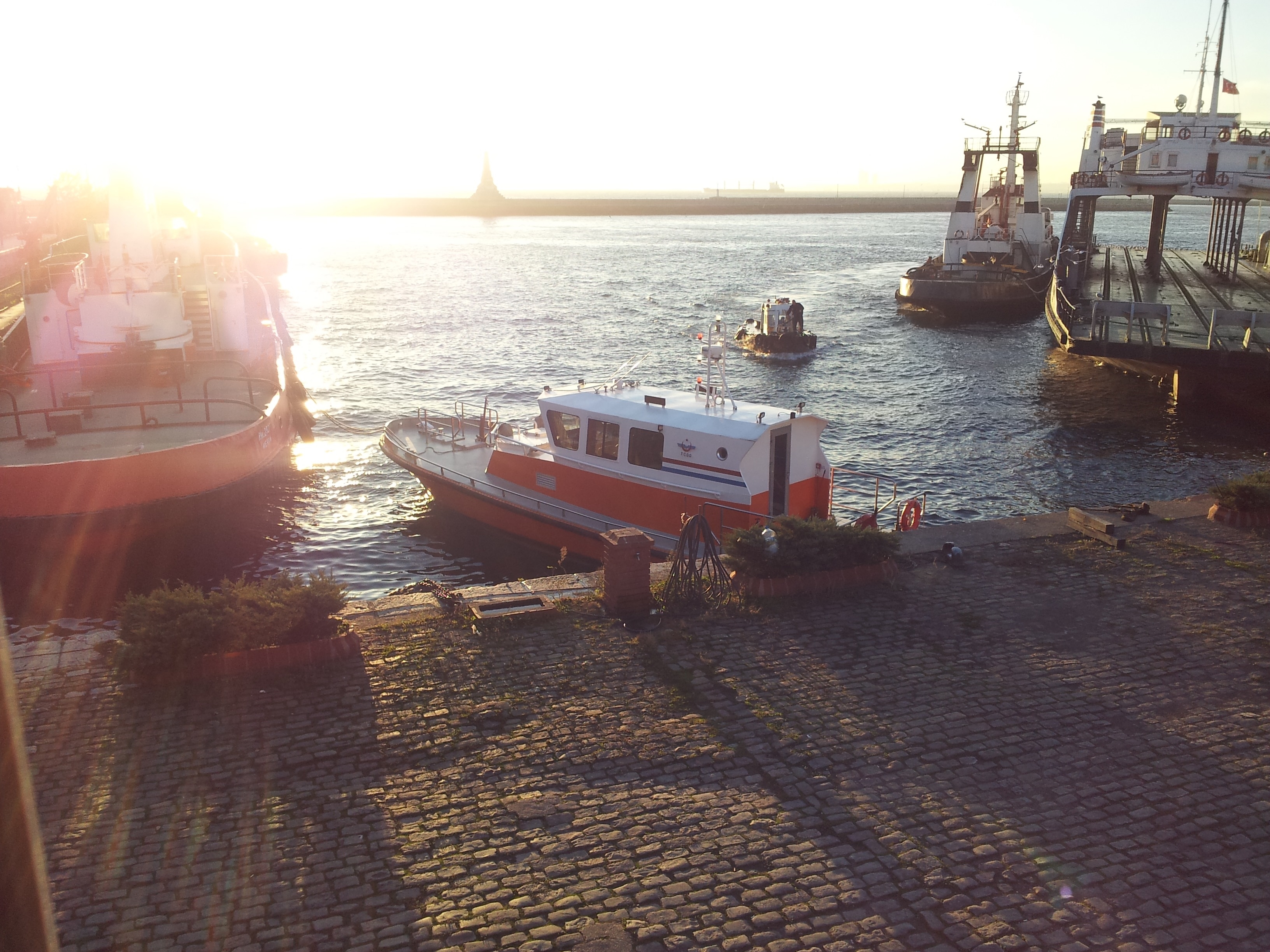

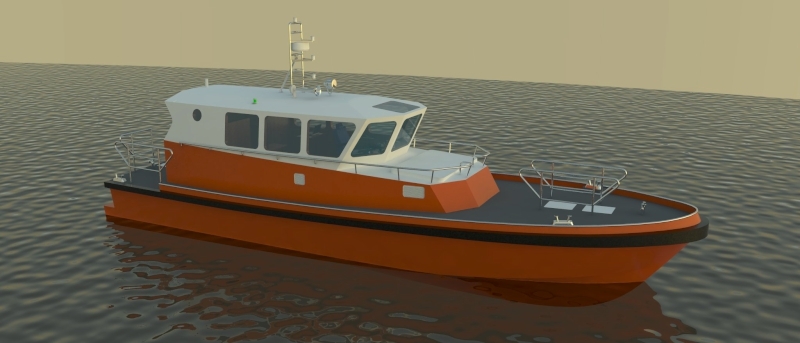

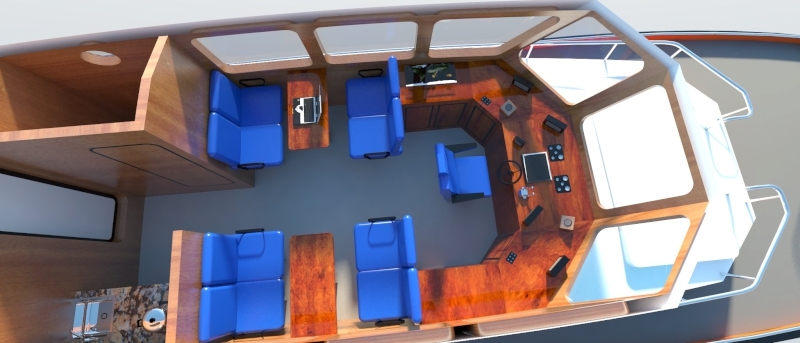

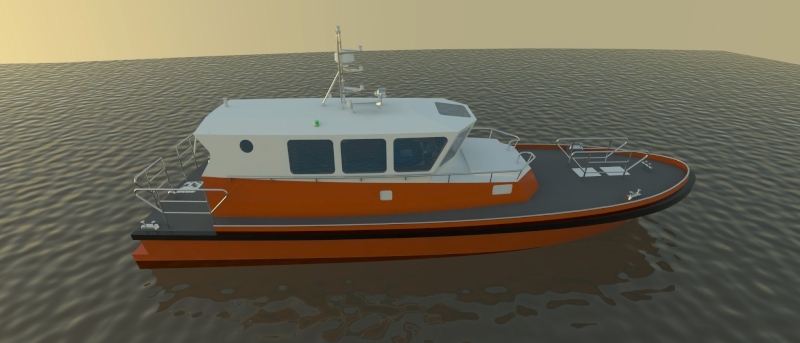

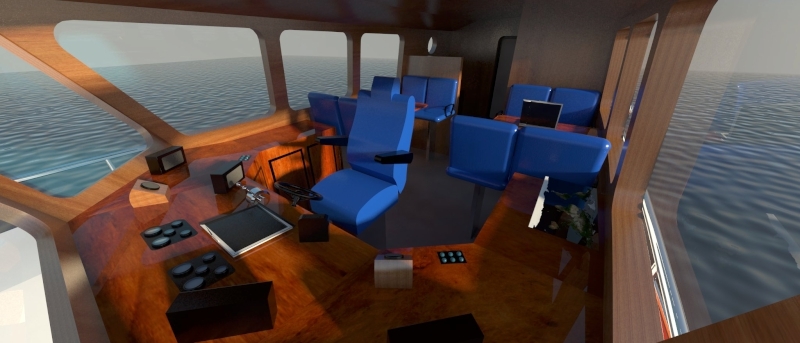

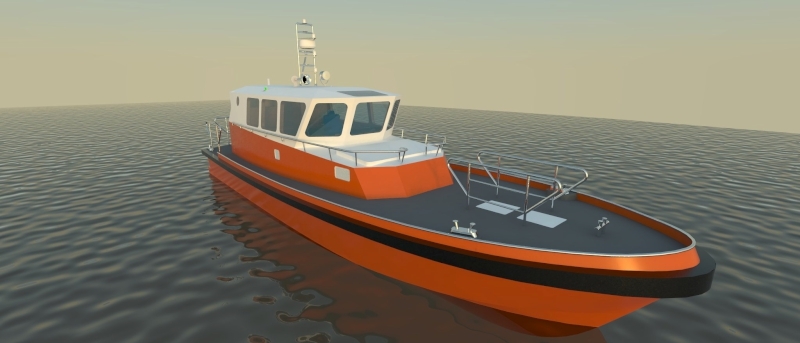

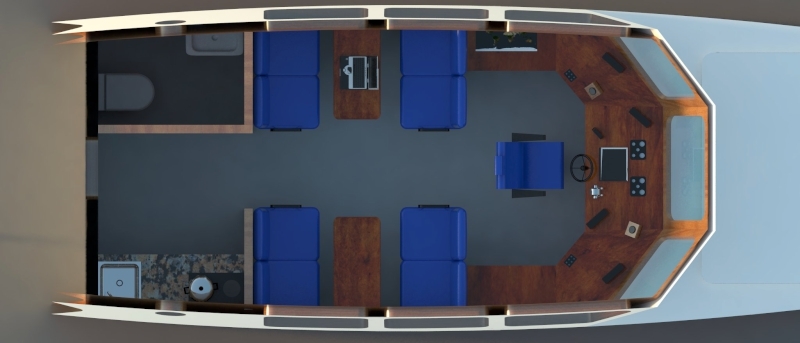

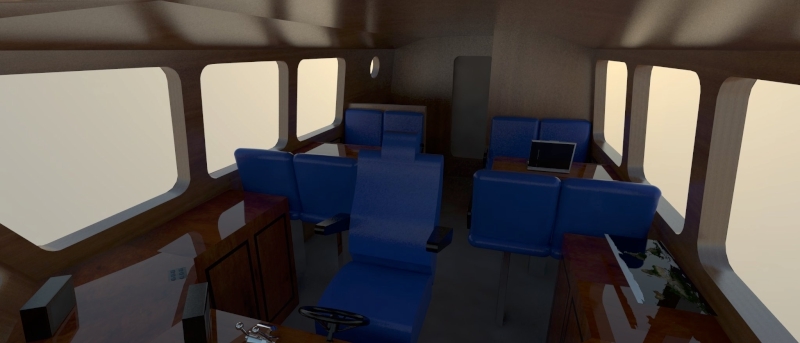

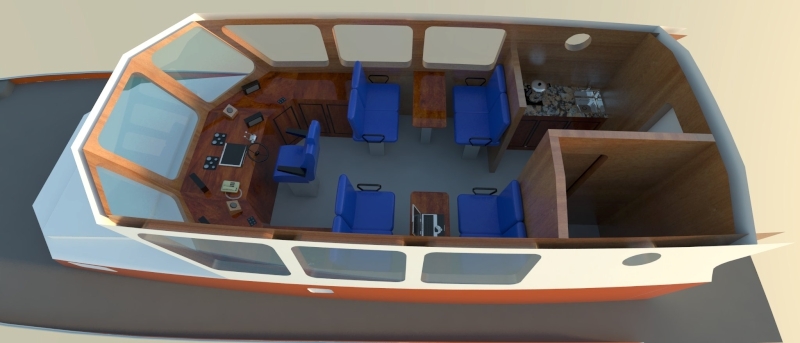

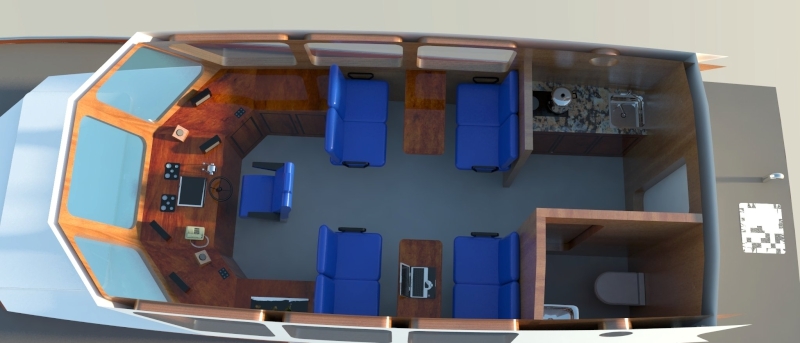

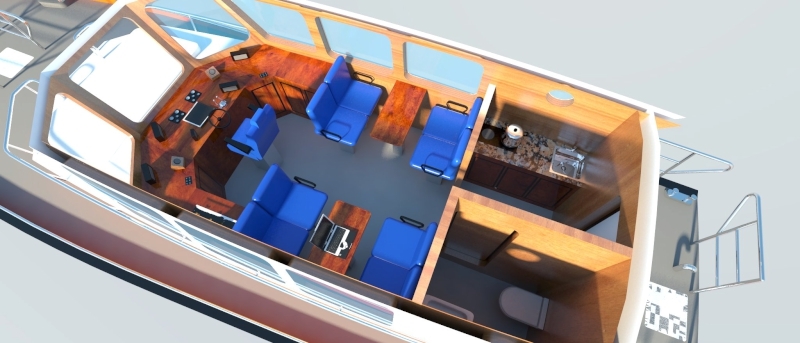

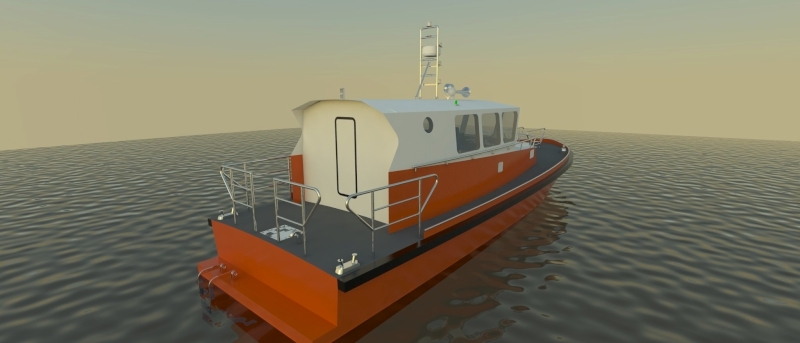

PHOTOS
