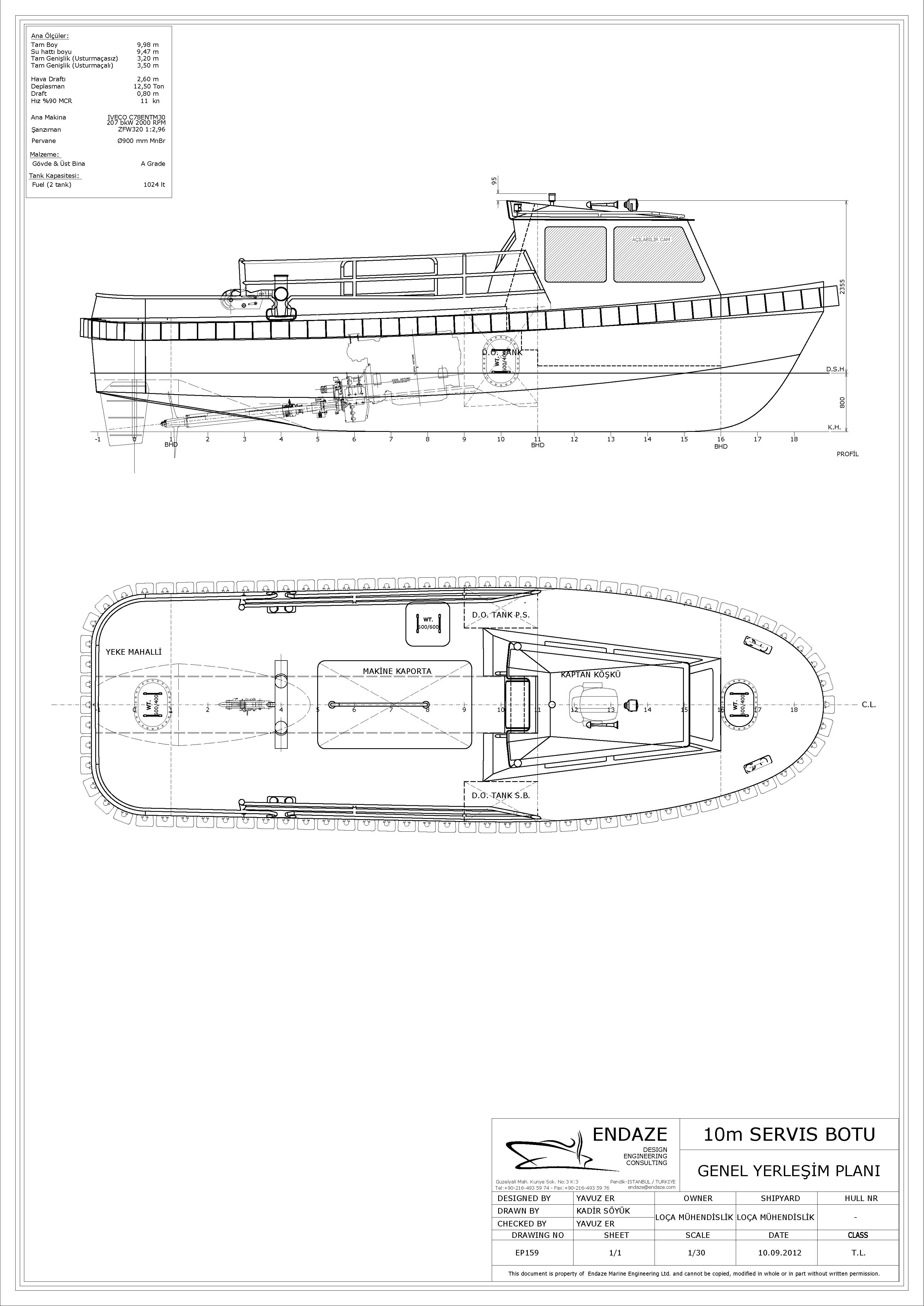

“10 m Service Boat” | |
Endaze Project No : | EP159 |
Name : | - |
Shipyard : | LOÇA MÜHENDİSLİK |
Owner : | - |
Classification : | - |
Main Dimensions | |
Length : | 9.98 m |
Breadth : | 3.50 m |
Depth : | 1.65 m |
Draught : | 0.80 m |
Speed : | 11.00 knot |
Propulsion : | Propeller , Diameter = 900mm |
Hull Material : | Steel A Grade |
S.S. Material : | Steel A Grade |
Main Engine Power : | IVECO C78ENTM30 207 BKW 2000 RPM |
Aux. Generator : | - |
Other : | - |
Scope | |
Conceptual | ENDAZE |
Consulting | ENDAZE |
Basic Design | ENDAZE |
Structural Detailed Design | ENDAZE |
Machinery and Piping Detailed Design | ENDAZE |
Engineering Calculations | ENDAZE |
Production | • |
Links | |
EP159 10 m Service Boat

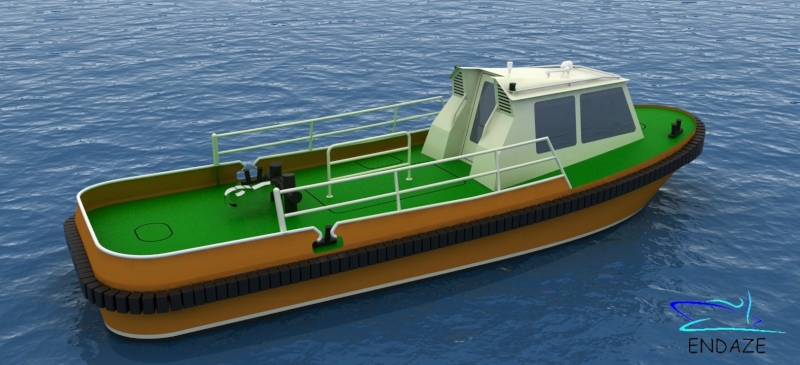

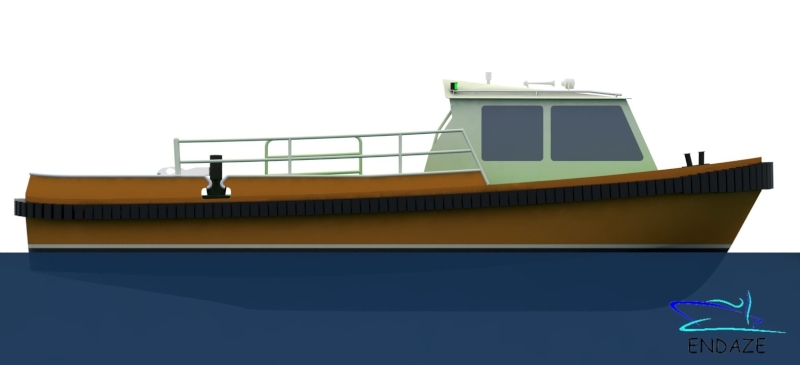

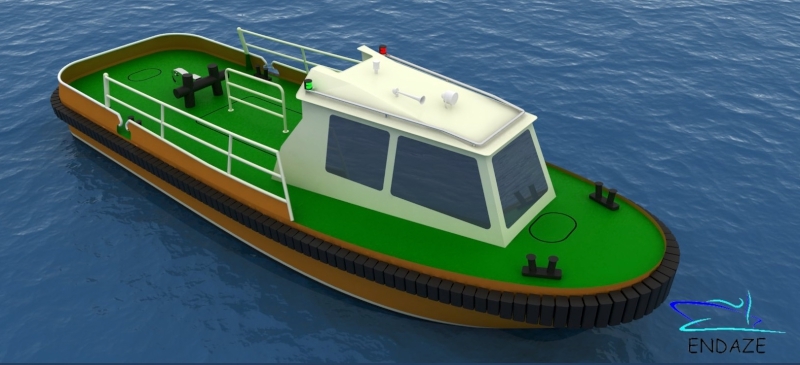

PHOTOS
